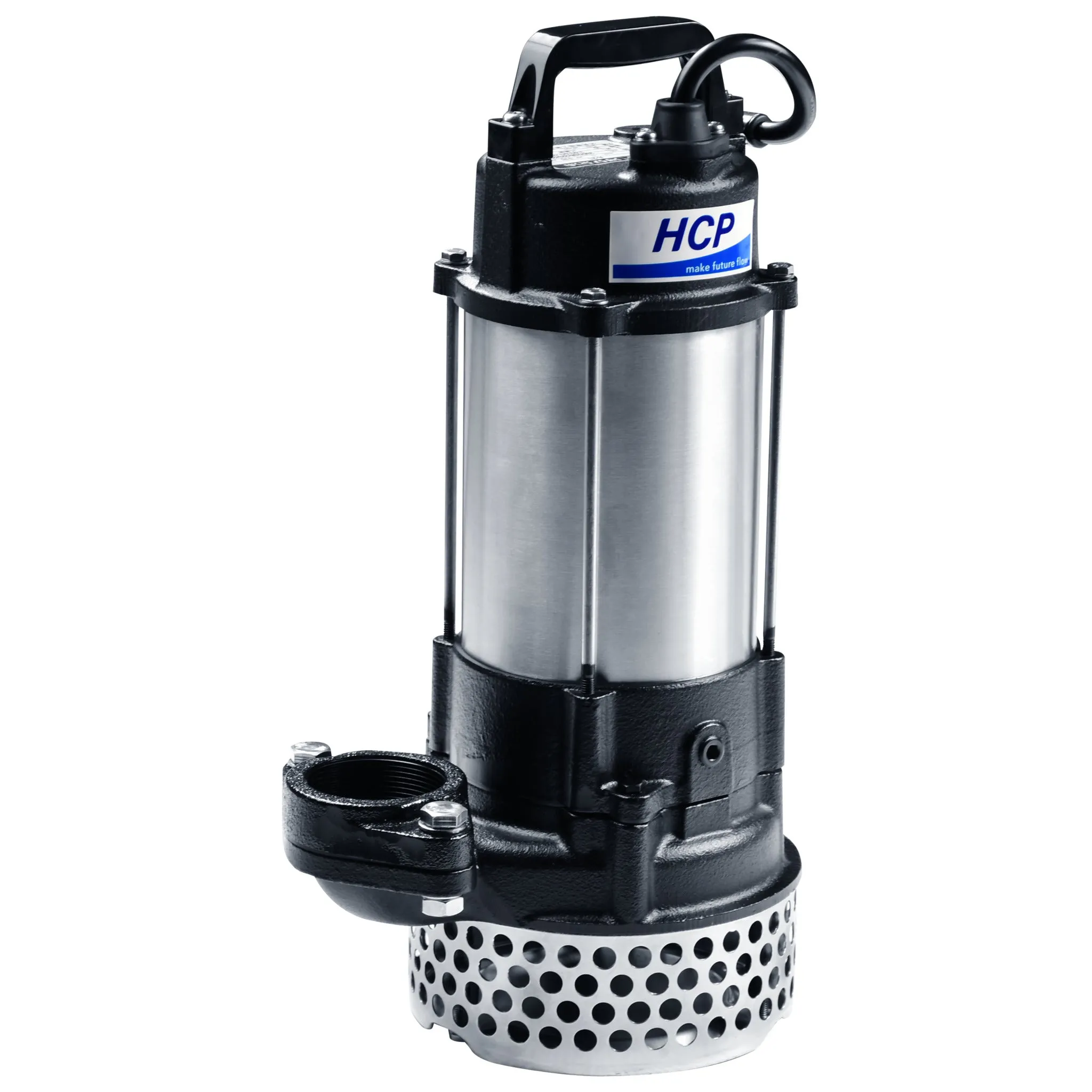

HCP Model A-05B Submersible Dewatering Pump: Tackle Tough Dewatering Tasks

The HCP Model A-05B Submersible Dewatering Pump is a 1/2 HP municipal quality pump, ideally suited for muddy and silty water applications. Featuring a robust bottom end strainer, it provides a solid base while preventing stones and rocks from entering the pump and jamming the impeller.

Key Features: Reliable and Efficient

• Durable Seals: Equipped with a carbon/ceramic upper side and silicon/carbide lower side seal for long life in dirty water applications.
• Sturdy Construction: The upper cover and volute are made with cast iron, and the motor frame is constructed with 304 stainless steel.
• Reinforced Impeller: Glass fiber reinforced thermoplastic impeller ensures durability and reliability.
• Thermal Protection: The motor is equipped with a built-in thermal protector to prevent pump overheating.

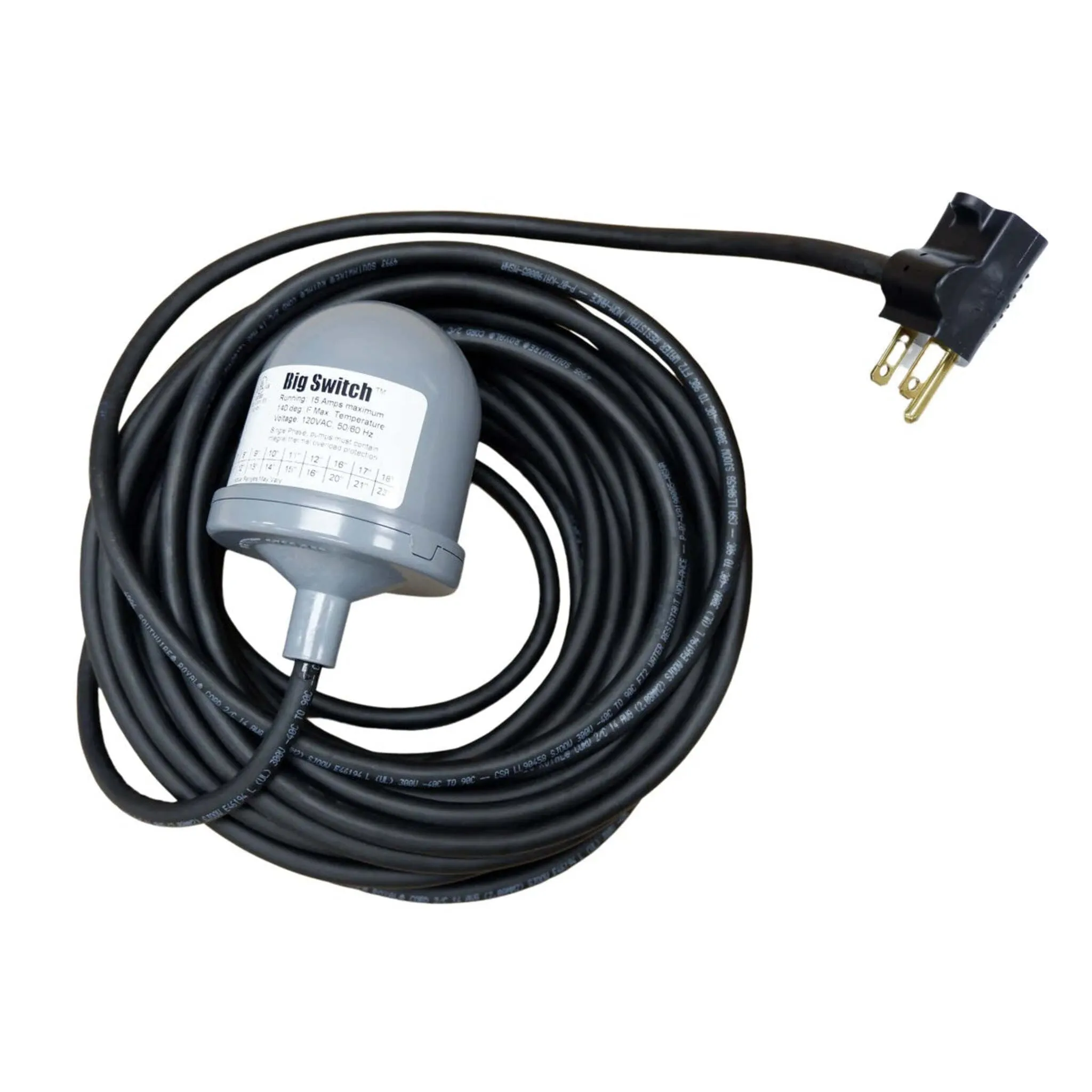

• Optional Float Switch: An optional piggyback float switch can automatically control the pump's on/off function based on water levels.
• Compact Design: Measures 9" x 7" x 15" tall and weighs 34 lbs.
• High Capacity: 2 Inch FPT discharge, handles 1/4" solids.
• Powerful Motor: 1/2 HP, 120V, 5.2A with a 30' cable length.

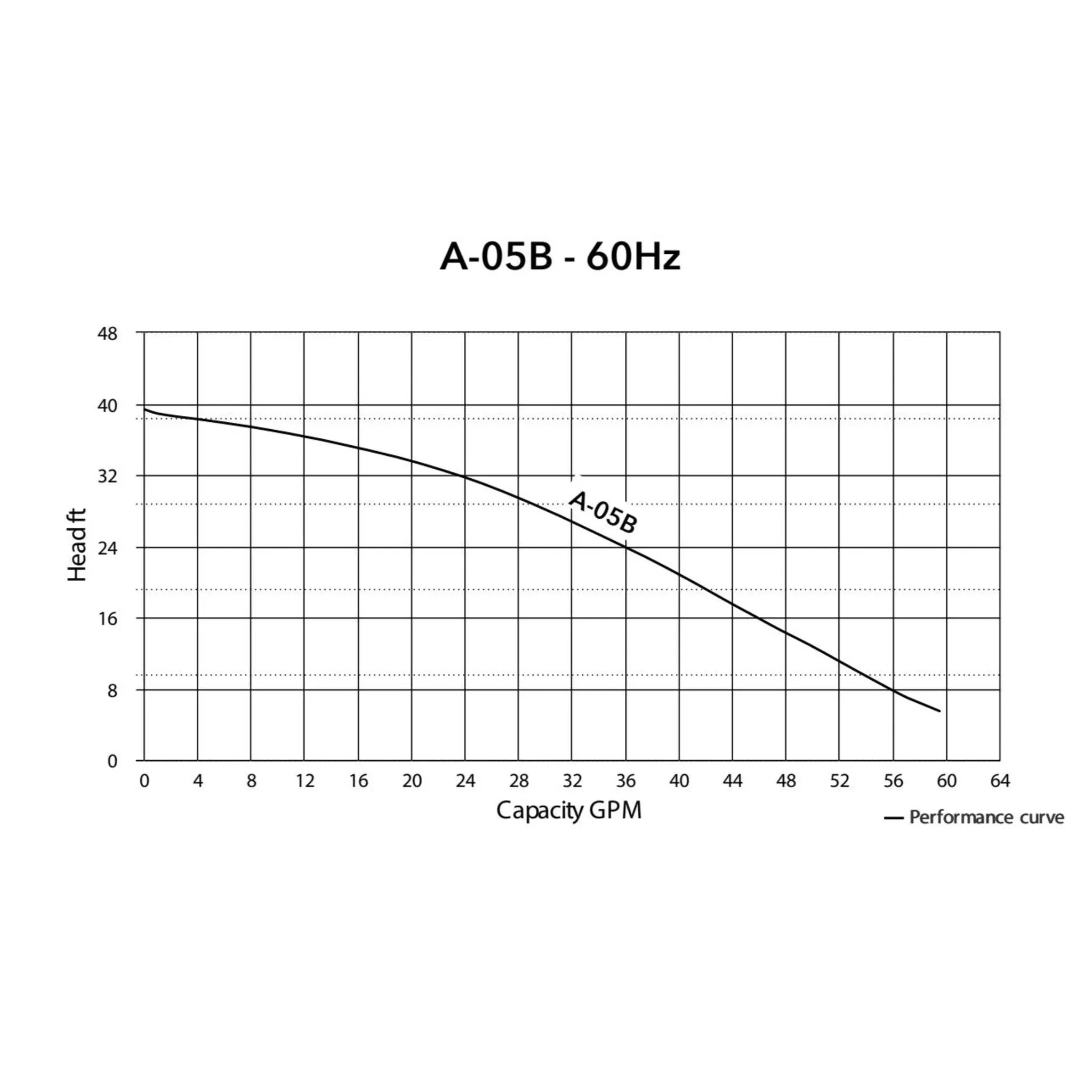

• High Performance: Maximum flow of 60 GPM @ 5' head and maximum head of 38 feet @ 5 GPM.
• Certified: cUL and CSA certified for quality and safety.

Elevate Your Dewatering Efficiency

Upgrade your dewatering system with the HCP Model A-05B Submersible Dewatering Pump. Designed for durability and efficiency, this pump ensures smooth operation in muddy and silty water conditions. With its built-in thermal protector and optional float switch, you can trust this pump to provide continuous, reliable service in challenging environments.
